21 October 2024
Facility for Antiproton and Ion Research Darmstadt, Germany
FAIR has been under construction in the southern Hessian science city of Darmstadt (Germany) since 2017: it is currently one of the world's largest research facilities. In this state-of-the-art accelerator centre, experiments will provide answers to currently unexplored questions about the structure of matter and the evolution of the universe.

CDM Smith has been part of this pioneering project during the pre-construc­tion phase already, since 2011, providing all geot­ech­ni­cal consultancy and planning services for the foundation of the construc­tion project and supervising work execution on site. We also supervised the execution of the work on site and planned the excavation pits, which were up to 21 metres deep. We also supervised their execution on site, including soil management for around 1 million cubic metres of excavated soil.

Except for the accelerator ring, we planned the structures’ construc­tion using a ‘combined pile-plate foundation’. Using 3-dimensional finite element calcu­la­tions, we inves­ti­gated the load bearing and deformation behaviour of the subsoil under the future load conditions. A test load with 16- and 22-metre-long bored piles at a depth of 60 metres and test fills improved the planning and cost certainty. Within a construc­tion period of just 14 months, 60,000 metres of bored piles were produced.

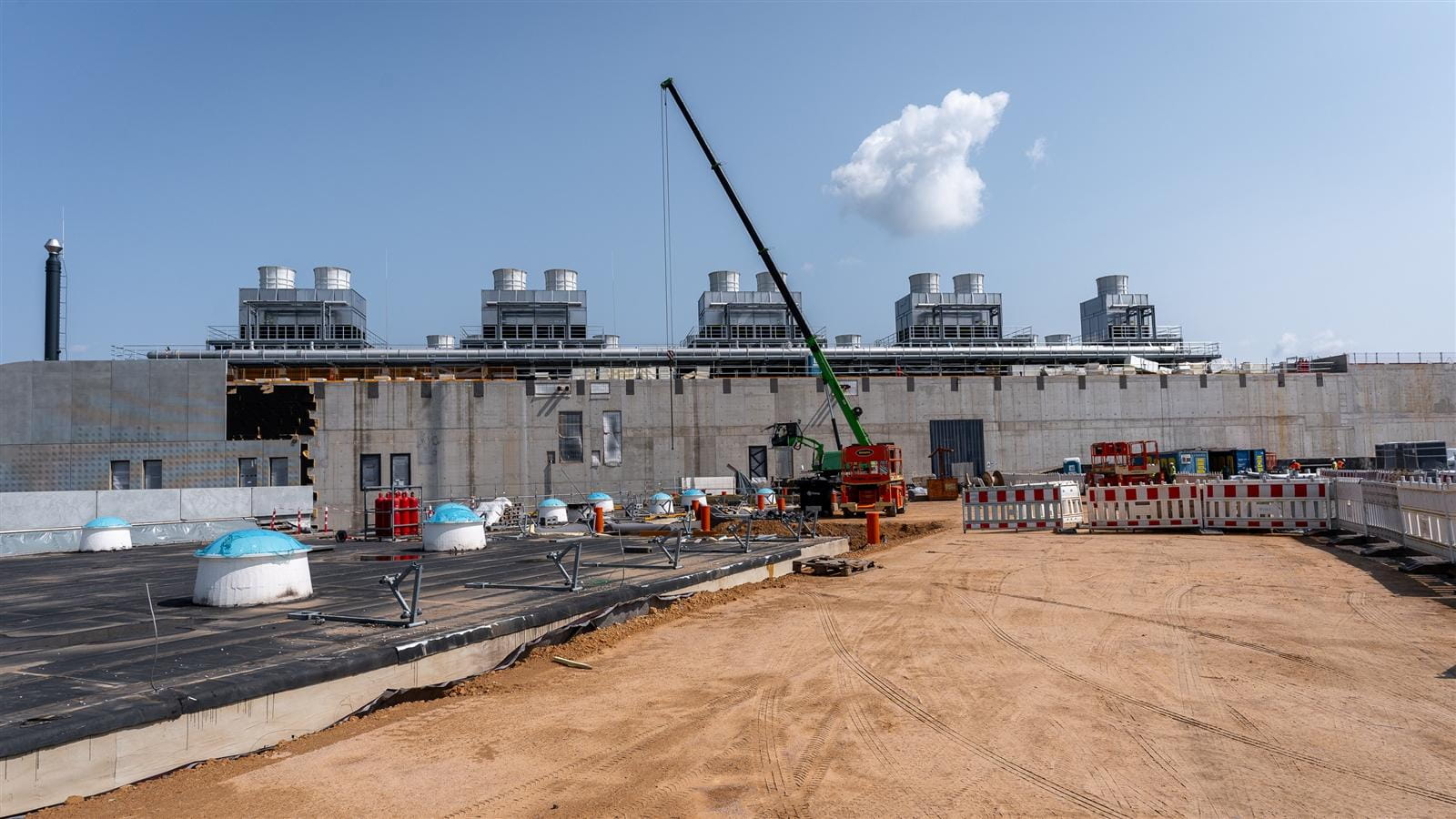

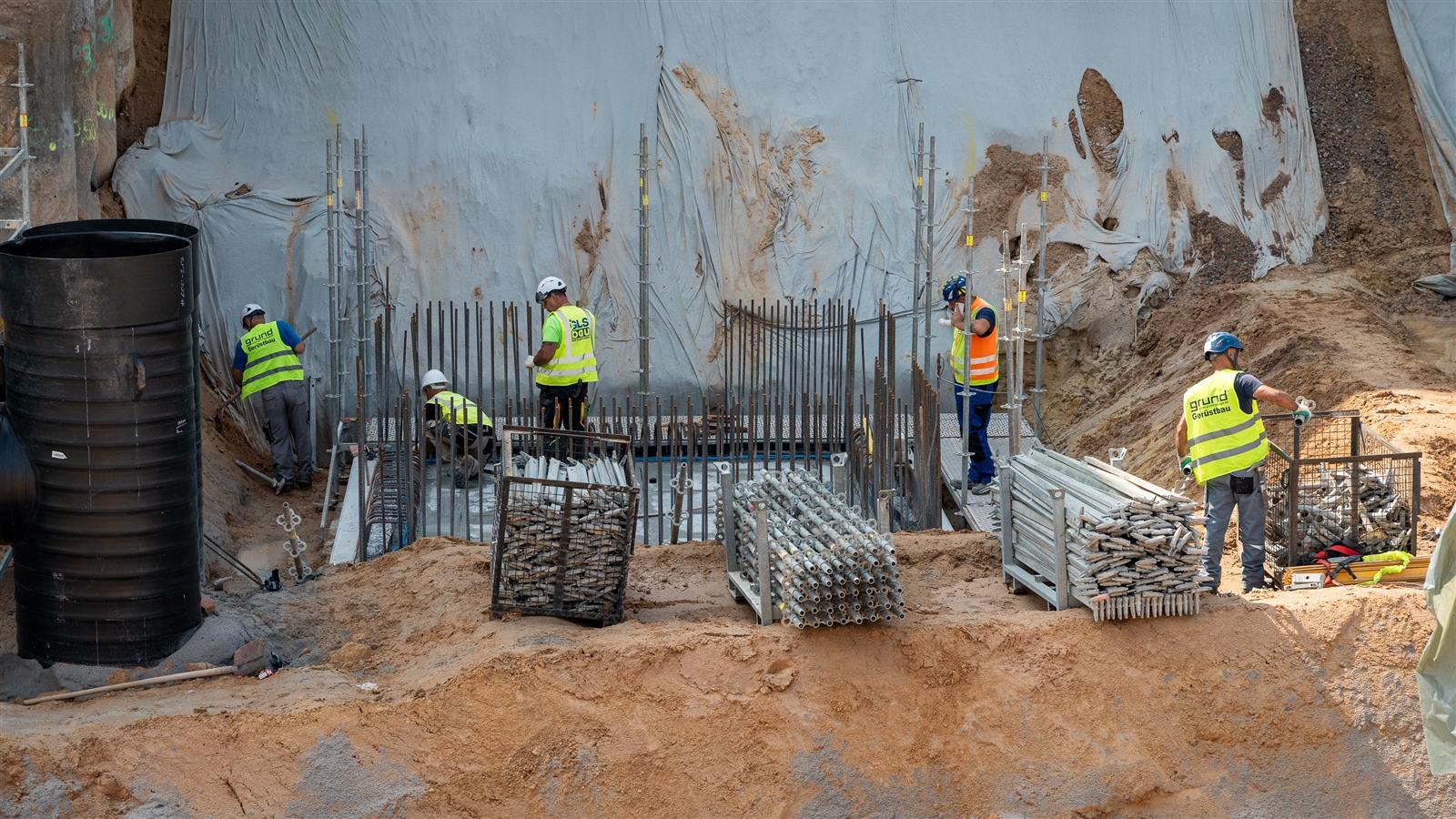

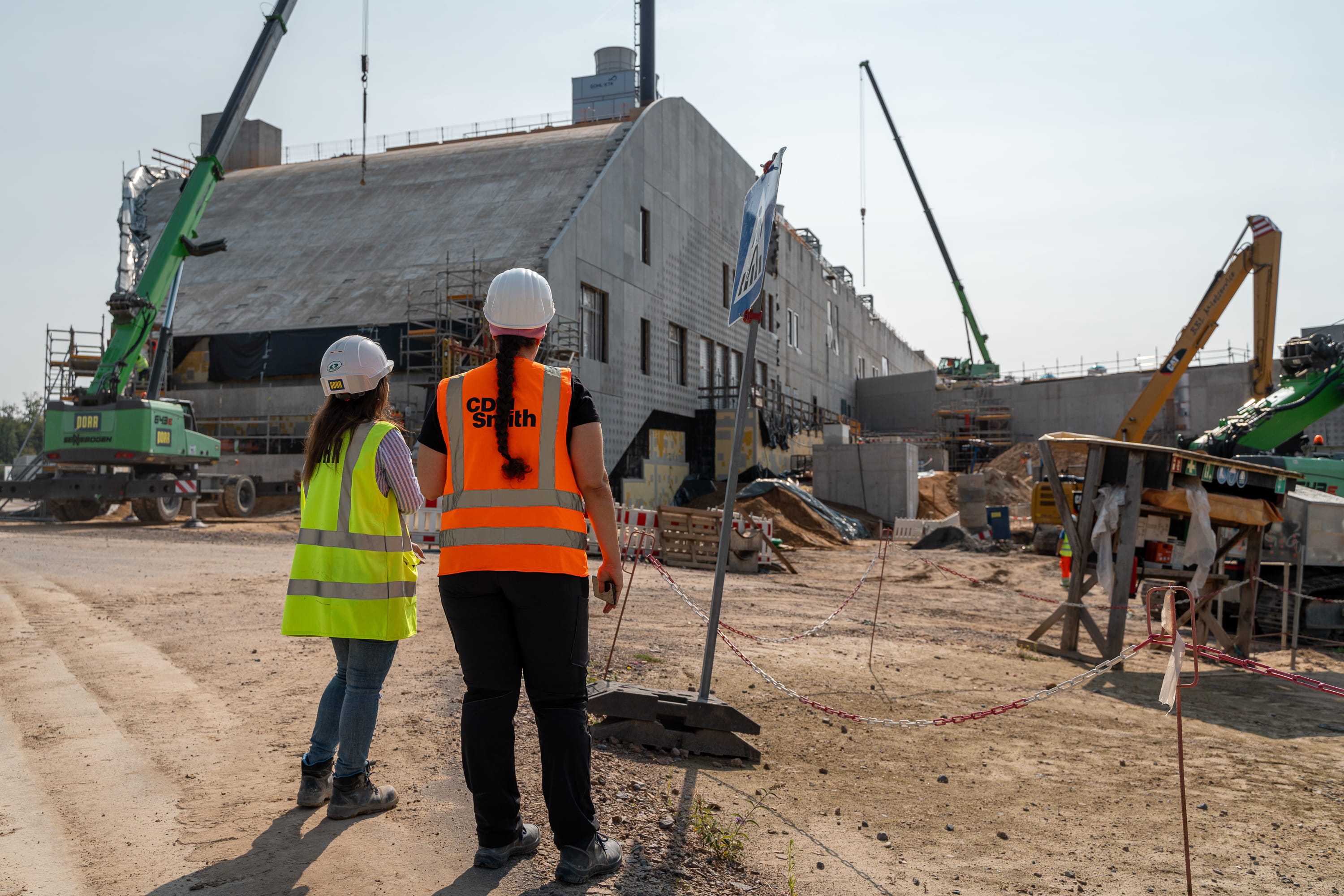

Currently, the shell construction work is being completed in two of the three construction areas. The installation of underground pipework on a large scale is still pending so is the finalisation of the terrain modelling by reinstalling the excavated soil. The backfill around the research buildings will be raised to a height of around 14 metres above the original ground level. CDM Smith is currently carrying out quality monitoring as part of this process. Parallel to the exterior work, the technical interior work with the research facilities is also progressing.

About CDM Smith

CDM Smith is a privately owned engineering and construction firm providing legendary client service and smart solutions in water, environment, transportation, energy, and facilities. Passionate about our work and invested in each other, we are inspired to think and driven to solve the world’s environmental and infrastructure challenges.

Did you know?

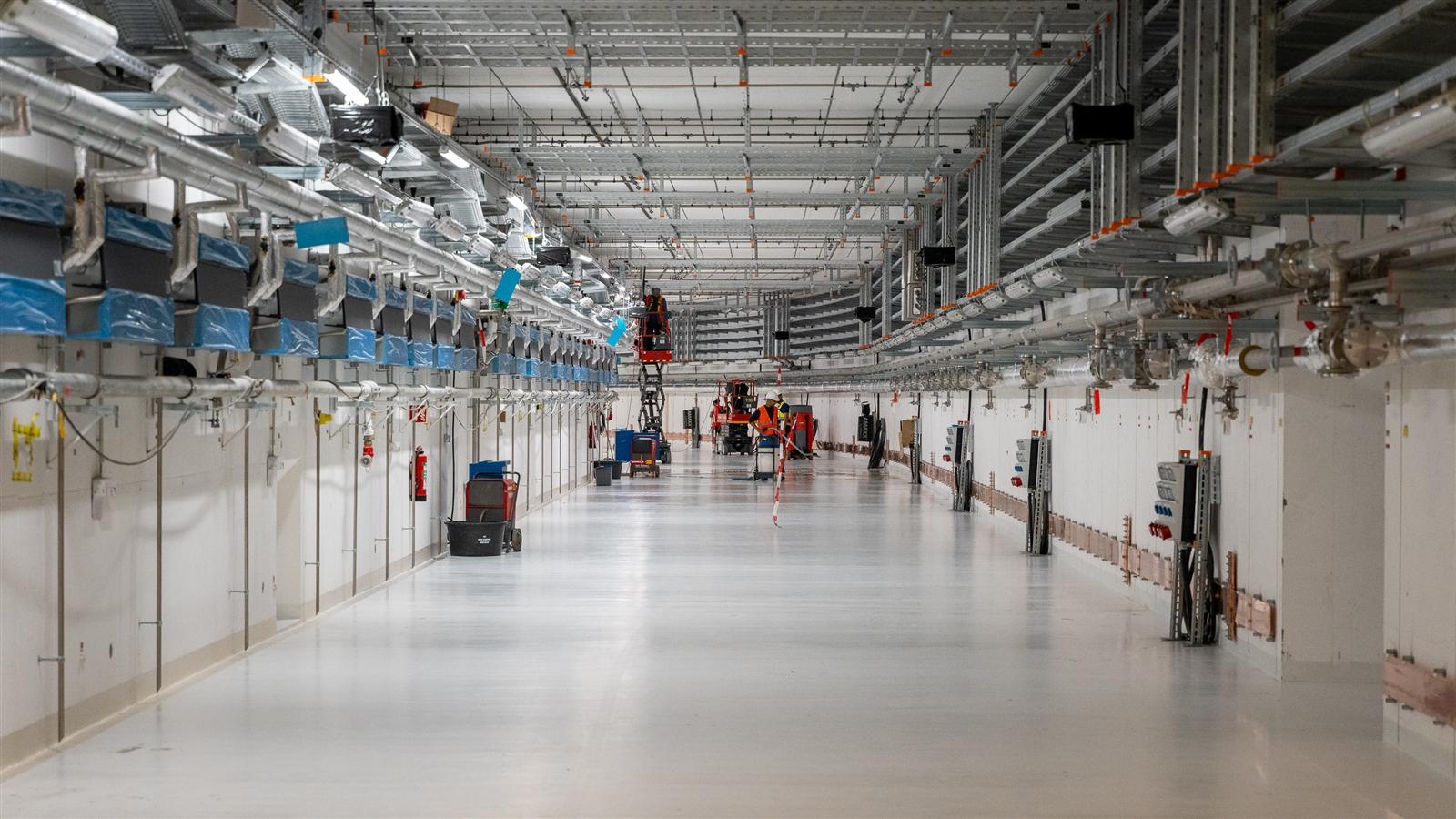

FAIR is a unique international accelerator facility for research with antiprotons and ions. The centrepiece of the new underground facility is a 1.1 km long ring accelerator. In this, electrically charged particles, ions and antiprotons reach a speed of 297,000 km/s and thus almost the speed of light. By colliding with a material sample such as foils or biological cell samples and the resulting collision reaction, scientists hope to gain new insights into the evolution of the universe.

Project
FAIR Construction Site
https://www.cdmsmith.com/en-EU/Client-Solutions/Projects/International-Accelerator-Facility-FAIR
For more details on the FAIR project in Darmstadt, including the geotechnical aspects of the construction and drone footage of the construction site, please click here.
